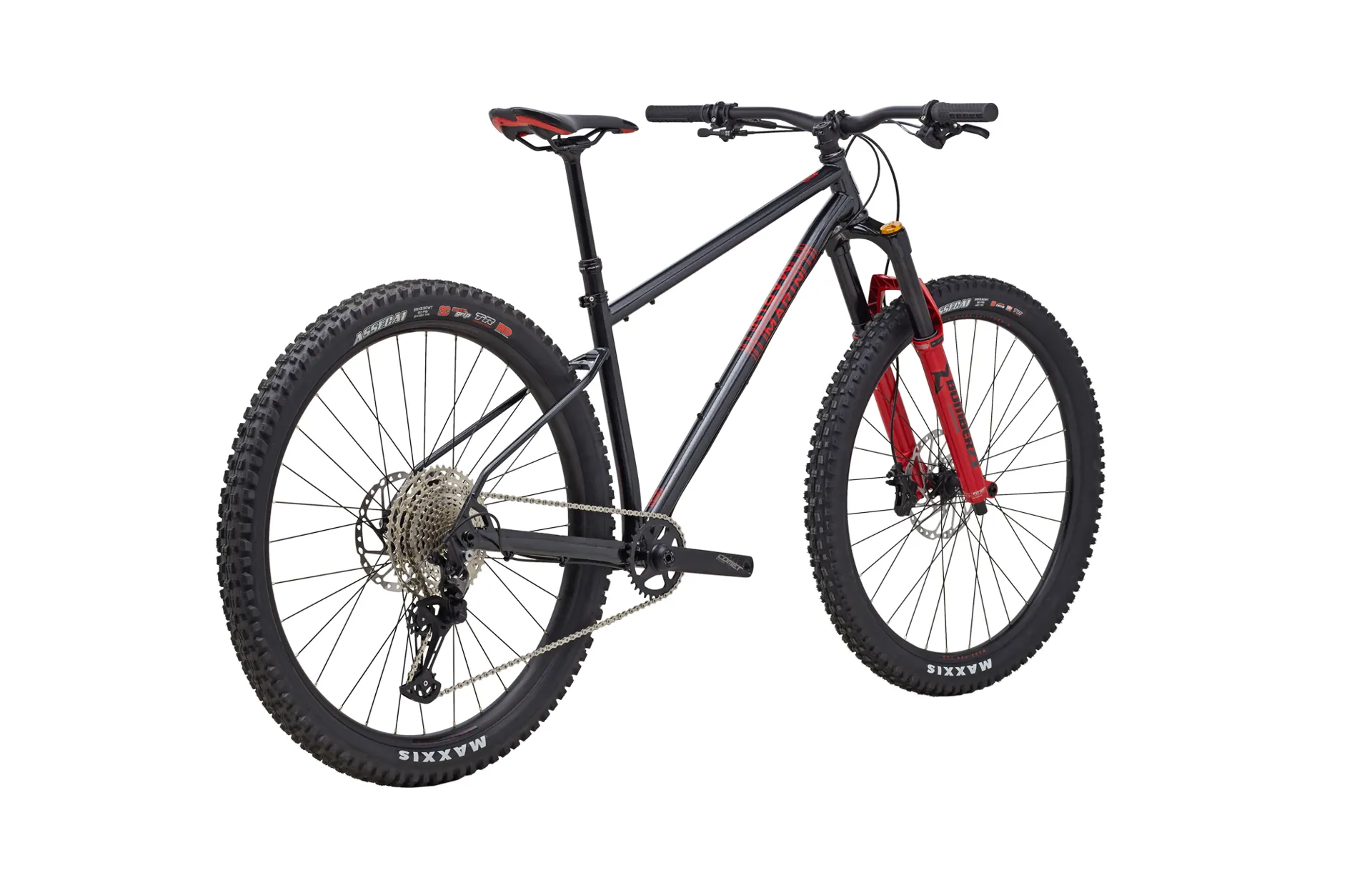

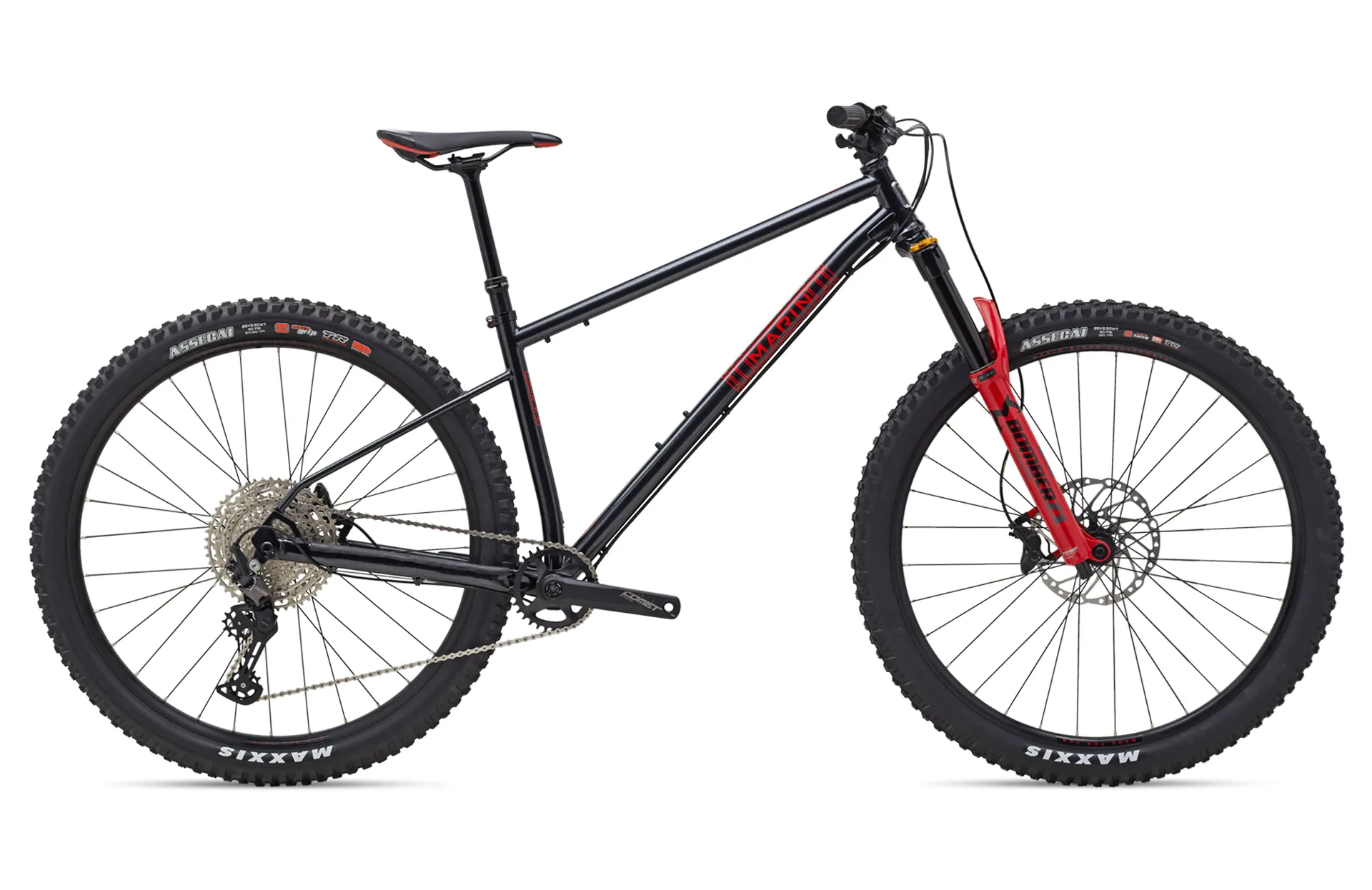

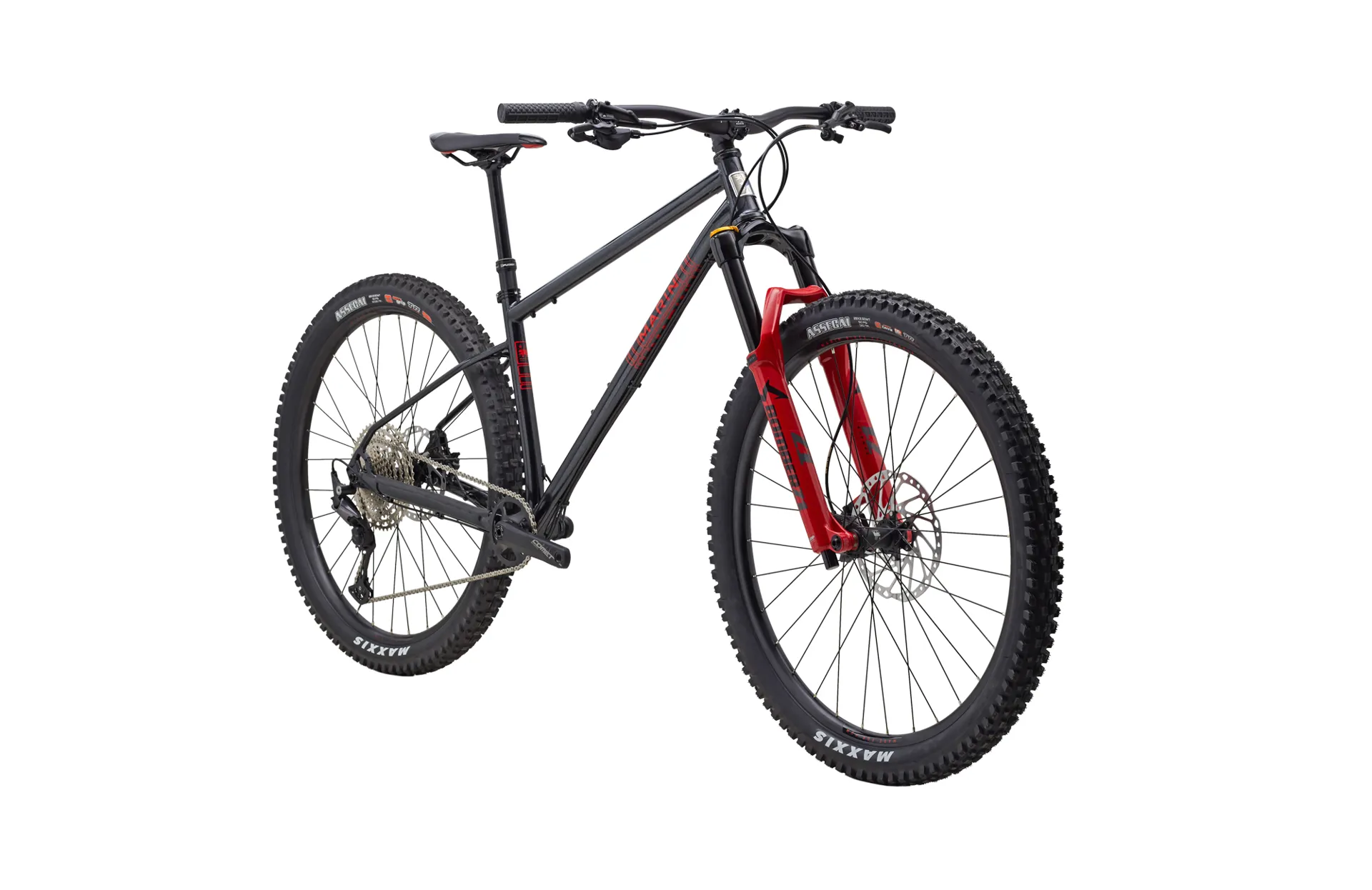

The Marin El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
Available in 2 sizes Regular and Grande
Regular suits 5'5" (165cm)to5'10" (178cm)
Grande suits 5'10" (178cm)to6'4" (193cm)
FRAME
Series 3 Double Butted and Formed CrMo Tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
FORK
Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
RIMS
Marin Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
HUB REAR
Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
HUB FRONT
Shimano HF-MT410B, 110x15mm, Centerlock
SPOKES
14g Black Stainless Steel
TIRES
Maxxis Assegai 29x2.5", MAXX GRIP, Double Down, Tubeless Compatible
DERAILLEUR REAR
Shimano Deore 6100 12-Speed SGS, Shadow Plus, Direct Attachment
SHIFT LEVER
Shimano Deore 12-Speed, SL-6100R
CRANKSET
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET
Mega EXO, 73mm BSA Threaded
CHAIN
KMC X-12 Silver and Black
CASSETTE
Shimano Deore 6100 12-Speed, 10-51T
BRAKES FRONT
Shimano MT420, 4-Piston Hydraulic Disc, 203mm Rotor
BRAKES REAR
Shimano MT420, 4-Piston Hydraulic Disc, 180mm Rotor
BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Single Clamp Locking
HEADSET
FSA Orbit 40 No.42 ACB
SEATPOST
X Fusion Manic with 1x Remote, Regular = 150mm Travel, Grande = 170mm Travel
SADDLE
Marin Speed Concept
EXTRAS
Bolt-On Thru-Axle
